Brand Name : Minvol
Model Number : MH-G-2R2G2B-P25*50E
Certification : CE/RoHS/FCC
Place of Origin : China
MOQ : Negotiable
Price : Negotiable
Payment Terms : T/T, Western Union, MoneyGram
Supply Ability : 200sqm/day
Delivery Time : negotiable
Packaging Details : negotiable
LED brand : Epistar
Input voltage : DC36-48V
Brightness : 7200CD/sqm
LED Color : RGB
Module size : 1200mm(L)*800mm(H)
Viewing angle : H120°/V60°
P25 Glass Window Curtain Advertising Video Wall P25 Led Transparent See-Through Wall Transparent Led Curtain Display
LED transparent screen has the characteristics of light weight, high brightness, high transparency and low wind loading, which breakthroughs many restrictions of building wall for traditional LED display.
Product parameters
Product Name: | P25*50 LED louver screen |
Item No: | MH-G-2R2G2B-P25*50E |
Light Source Brand: | Epistar |
Light Source Model: | 346 2R2G2B DIP |
Size/Unit: | 1200mm(L)*800mm(H) |
Viewing Angle: | H120°/V60° |
Power(W)/㎡: | 260W/sqm |
Average Power/㎡(W): | 90W/sqm |
Voltage: | DC36-48V |
Pixel Pitch(mm): | 25mm(H)*50mm(V) |
Light Bar Size(mm): | 14mm*1200mm |
Resolution: | 16pixel*48pixel/Unit |
LED quantity/㎡(PCS): | 800 pixel/sqm |
Brightness(CD/㎡): | >7200CD/sqm |
Grey Scale: | 65536 |
Refresh Rate(Hz): | >5000Hz |
Transparency: | >72% |
Weight: | 10.8kg/sqm |
Protection Grade: | IP67 |
Operation Temperature: | -20℃~50℃ |
Life Time: | ≥50000 hours |
Related Cert.: | CE RoHS FCC |
Product pictures
Module size
Product Installation Schematic
Control Diagram

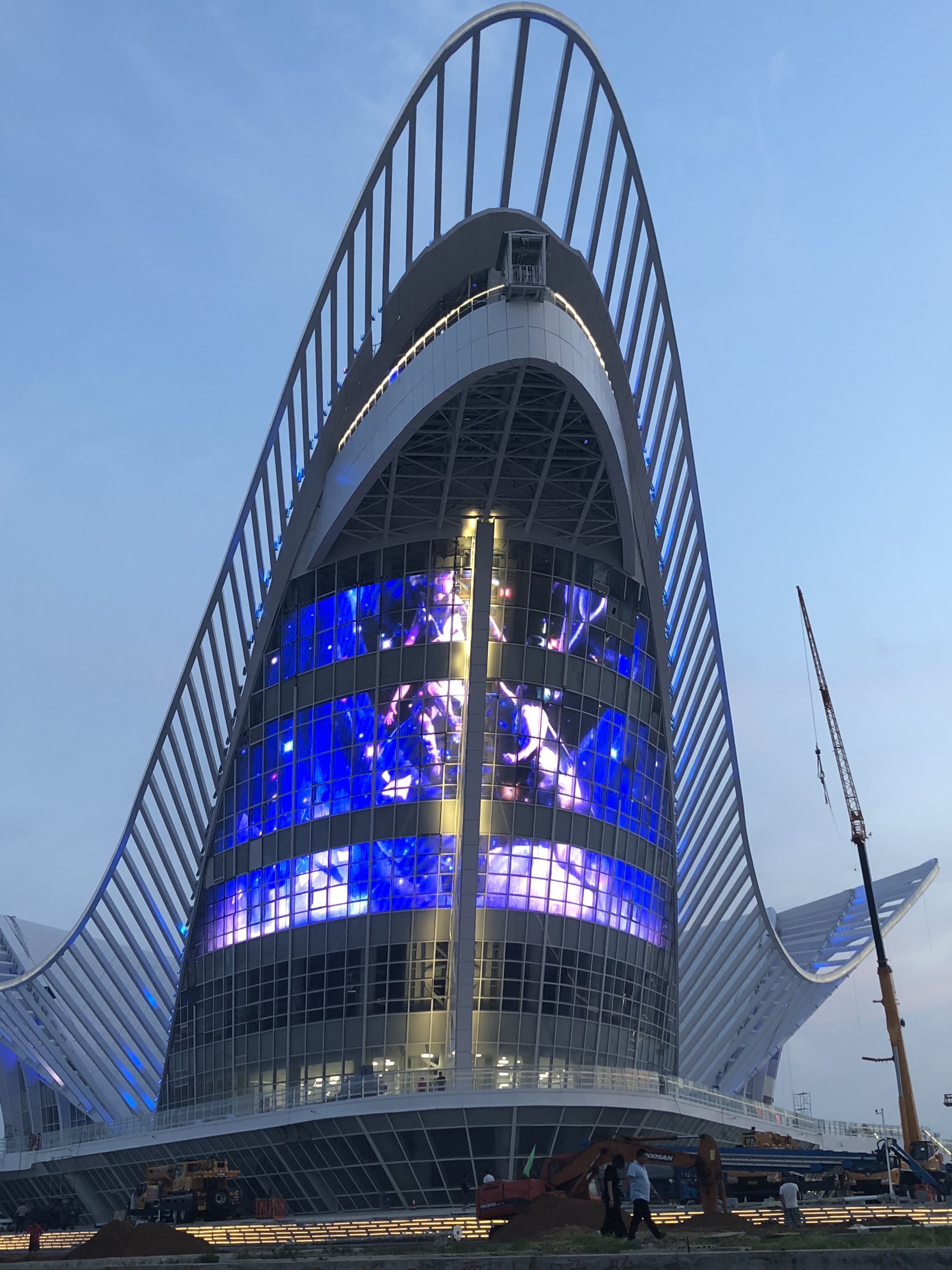

Projects pictures
![]() |
P25 Glass Window Curtain Advertising Video Wall P25 Led Transparent See-Through Wall Transparent Led Curtain Display Images |
