Embedded Building Advertising Transparent Glass LED Screen HD 10.4mm

Name: Embedded Building Advertising Transparent Glass LED Screen HD 104mm
Brand: Minvol
Price: 1 USD

Quality Embedded Building Advertising Transparent Glass LED Screen HD 10.4mm for sale

Brand Name : Minvol

Model Number : MH-ZHP-P10.4

Certification : CE/RoHS/FCC

Place of Origin : China

MOQ : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 60sqm/day

Delivery Time : negotiable

Packaging Details : negotiable

Price : Negotiable

Input voltage : AC220V

Brightness : ＞4200CD/sqm

LED quantity : 4416pixel/sqm

Maximum power : 400W/sqm

Screen dimension : Customized Size

Tube chip color : Full Color

Pixels : 10.4mm

Usage : indoor/outdoor

Display function : graphics and video

Contact Now

Embedded Building Advertising Transparent Glass LED Screen HD 10.4mm

Product discription

LED transparent glass screen, (also known as transparent screen, glass screen, window screen). The front of the panel attached double-sided transparent adhesive, which has long-lasting viscosity and can be directly pasted on the glass to achieve fixed screen.The screen drive box has a built-in power supply, which can be connected in series with 16 units. no need add power supply in the middle, customized connectors to connect screens, wireless connection, beautiful and reliable. LED intelligent cloud screenadopts the form of the light bars assembled into the screen so that it has the advantages of good heat dissipation performance and light weight. Safety wire rope can be optionally added to fix the screen body. The screen is a new product developed based on the characteristics of the traditional LED display..

Product parameters

Product Name:	P10.4 transparent glass screen
Item No:	MH-ZHP-P10.4
Light Source Model:	2121
Size/Unit:	1500mm(L)*500mm(H)
Viewing Angle:	H120°/V120°
Power(W)/㎡:	400W/㎡
Average Power/㎡(W):	120W/㎡
Voltage:	AC220V
Pixel Pitch(mm):	10.4mm(H)*10.4mm(V)
Resolution:	92pixel*48pixel/Unit
LED quantity/㎡(PCS):	4416 pixel/㎡
Brightness(CD/㎡):	＞4200CD/㎡
Grey Scale:	65536
Refresh Rate(Hz):	＞3840Hz
Transparency:	＞90%
Weight:	10kg/Unit
Protection Grade:	IP66
Operation Temperature:	-20℃~45℃
Life Time:	≥100000 hours
Related Cert.:	CE RoHS FCC

Product pictures

Embedded Building Advertising Transparent Glass LED Screen HD 10.4mm

Module size

Embedded Building Advertising Transparent Glass LED Screen HD 10.4mm

Product Installation Schematic

Embedded Building Advertising Transparent Glass LED Screen HD 10.4mm

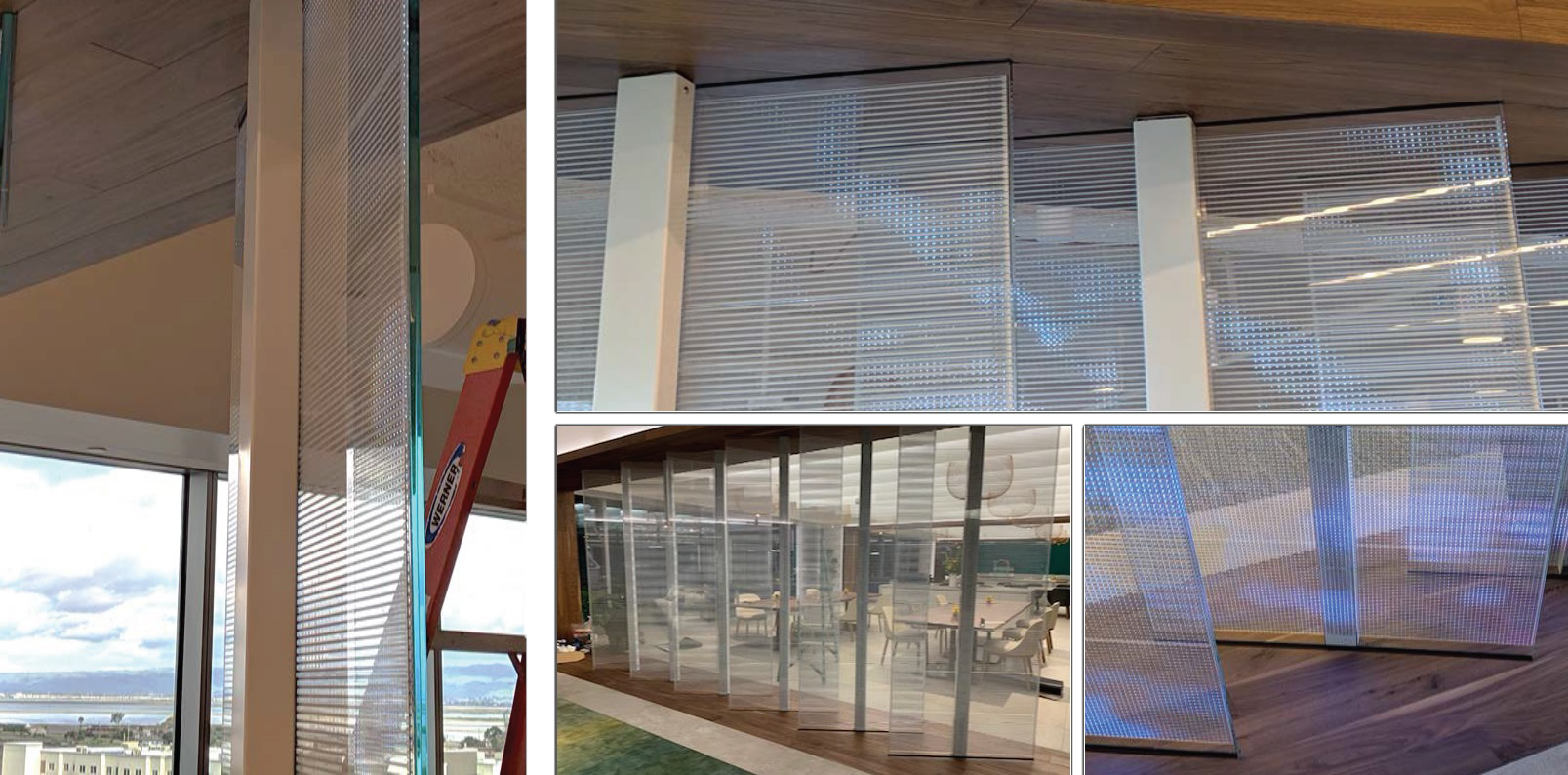

Projects pictures

Embedded Building Advertising Transparent Glass LED Screen HD 10.4mm
